| Datasheet Fortigate FG-400F-BDL-950-36 | |
|---|---|
| Interfaces and Modules | |
| Hardware Accelerated GE RJ45 Interfaces | 16 |
| Hardware Accelerated GE SFP Slots | 8 |
| Hardware Accelerated 10GE SFP+ Slots | 4 |
| Hardware Accelerated 10GE SFP+ Ultra Low Latency Slots | 4 |
| GE RJ45 Management Ports | 2 |
| USB Ports | 1 |
| RJ45 Console Port | 1 |
| Onboard Storage | 0 |
| Trusted Platform Module (TPM) | Yes |
| Included Transceivers | 2x SFP (SX 1 GE) |
| System Performance — Enterprise Traffic Mix | |
| IPS Throughput | 12 Gbps |
| NGFW Throughput | 10 Gbps |
| Threat Protection Throughput | 9 Gbps |
| System Performance and Capacity | |
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 79.5 / 78.5 / 70 Gbps |
| IPv6 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 79.5 / 78.5 / 70 Gbps |
| Firewall Latency (64 byte, UDP) | 4.19 μs / 2.5 μs* |
| Firewall Throughput (Packet per Second) | 105 Mpps |
| Concurrent Sessions (TCP) | 7.8 Million |
| New Sessions/Second (TCP) | 500,000 |
| Firewall Policies | 10,000 |
| IPsec VPN Throughput (512 byte) | 55 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 2,000 |
| Client-to-Gateway IPsec VPN Tunnels | 50,000 |
| SSL-VPN Throughput | 3.6 Gbps |
| Concurrent SSL-VPN Users (Max, Tunnel Mode) | 5,000 |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 8 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 6,000 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 800,000 |
| Application Control Throughput (HTTP 64K) | 28 Gbps |
| CAPWAP Throughput (HTTP 64K) | 65 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of FortiSwitches Supported | 72 |
| Maximum Number of FortiAPs (Total / Tunnel) | 512 / 256 |
| Maximum Number of FortiTokens | 5,000 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
| Dimensions and Power | |
| Height x Width x Length (inches) | 1.75 x 17.0 x 15.0 |
| Height x Width x Length (mm) | 44.45 x 432 x 380 |
| Weight | 14.11 lbs (6.4 kg) |
| Form Factor | Rack Mount, 1 RU |
| AC Power Consumption (Average / Maximum) | 154.8 W / 189.2 W |
| AC Power Input | 100–240V AC, 50/60Hz |
| AC Current (Maximum) | 6A |
| Heat Dissipation | 645.58 BTU/h |
| Power Supply Efficiency Rating | 80Plus Compliant |
| Redundant Power Supplies (Hot Swappable) | Yes (Default dual AC PSU for 1+1 Redundancy) |
| Operating Environment and Certifications | |
| Operating Temperature | 32°–104°F (0°–40°C) |
| Storage Temperature | -31°–158°F (-35°–70°C) |
| Humidity | 5%–90% non-condensing |
| Noise Level | LPA 48 dBA / LWA 55 dBA |
| Airflow | Side and Front to Back |
| Operating Altitude | Up to 10,000 ft (3,048 m) |
| Compliance | FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB |
| Certifications | USGv6/IPv6 |

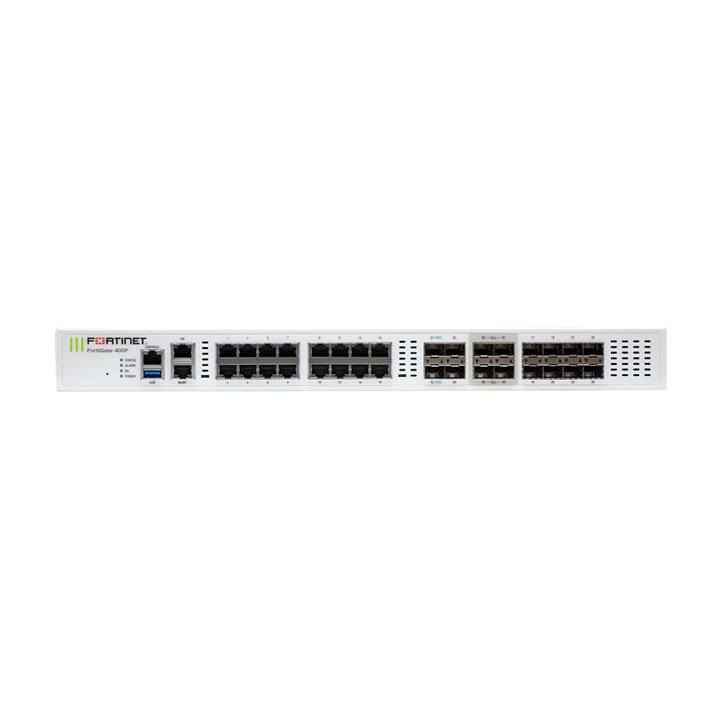

Fortinet FG-400F-BDL-950-12
Thiết bị tường lửa Fortigate FG-400F-BDL-950-36 Multiple GE RJ45, 10GE SFP+ Slots, GE SFP Slots.
- Recommended: 301 – 500 User Network
- Firewall Throughput: 80 Gbps
- New Sessions/Sec: 500,000
- 8 Million Concurrent Sessions
- IPsec VPN Throughput: 55 Gbps VPN
- 3 Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP).
