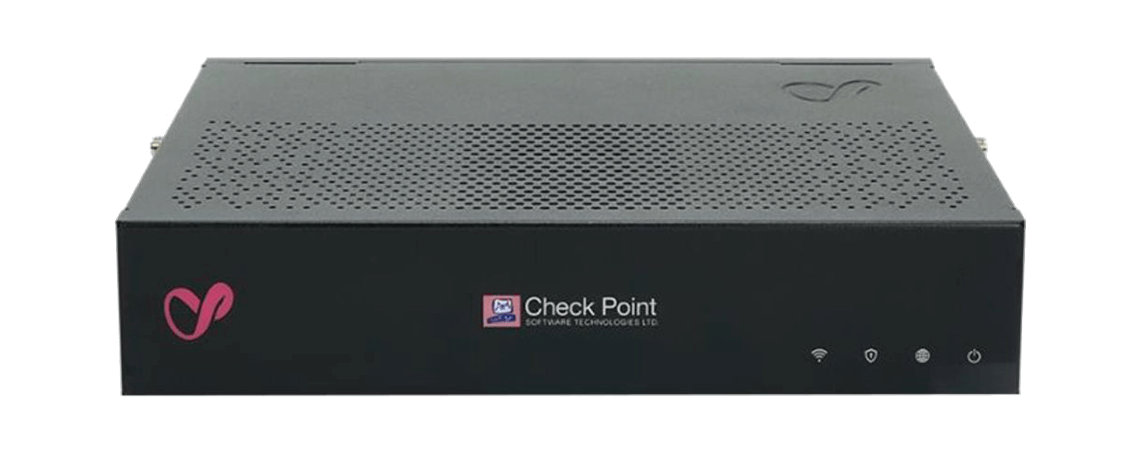

Check Point Quantum Spark SG1570W (CPAP-SG1570W-LA)

Thiết bị tường lửa Checkpoint CPAP-SG1570W-LA Quantum Spark 1500 series hỗ trợ wi-fi 802.11n/ac, 1x 1GbE WAN port, 1x 1GbE copper/fiber DMZ port, 8x 1GbE LAN switch, USB-C console port.

Thông số kỹ thuật
Mô tả sản phẩm

Enterprise Testing Conditions
Threat Prevention (Mbps)	600
Next Generation Firewall (Mbps)	970
IPS Throughput (Mbps)	1,050
Firewall Throughput (Mbps)	2,800
RFC 3511, 2544, 2647, 1242 Performance (LAB)
Firewall 1518 Byte UDP Packets (Mbps)	6,400
VPN AES-128 Throughput (Mbps)	1,950
Connections per Second	15,750
Concurrent Connections	500,000
Software
Security	Firewall, VPN, User Aware, QoS, Application Control, URLF, IPS, Anti-Bot, Antivirus, Anti-Spam, sandboxing
Unicast, Multicast Routing	OSPFv2, BGPv4 and 4++, RIP, PIM (SM, DM, SSM), IGMP
Mobile Access License (Users)	200 remote SNX or Mobile VPN client users
Hardware
WAN Port	1x 10/100/1000Base-T RJ-45 port
DMZ Port	1x 10/100/1000Base-T RJ-45 / 1x 1000BaseF SFP port (transceiver not included)
LAN Ports	8x 10/100/1000Base-T RJ-45 ports
Wi-Fi (optional)	802.11 b/g/n and 802.11 n/ac wave II MIMO 4×4
Radio Band (association rate)	Two radio bands concurrent: 2.4GHz (max 450 Mbps) and 5GHz (max 1,700 Mbps)
Console Port	1x USB-C
USB Port	1x USB 3.0
SD Card Slot	Micro-SD slot
Dimensions
Enclosure	Desktop
Dimensions (W x D x H)	210 x 170 x 42 mm, 8.3 x 6.7 x 1.7 in
Weight	0.87 kg (1.9 lbs.)
Environment
Operating / Storage	0°C – 40°C / -45°C – 60°C (5–95%, non-condensing)
Power Requirements
AC Input	110 – 240VAC, 50 – 60 Hz
Power Supply Rating	12V/5A 60W power adapter
Power Consumption (Max)	31.28W
Heat Dissipation	106.73
