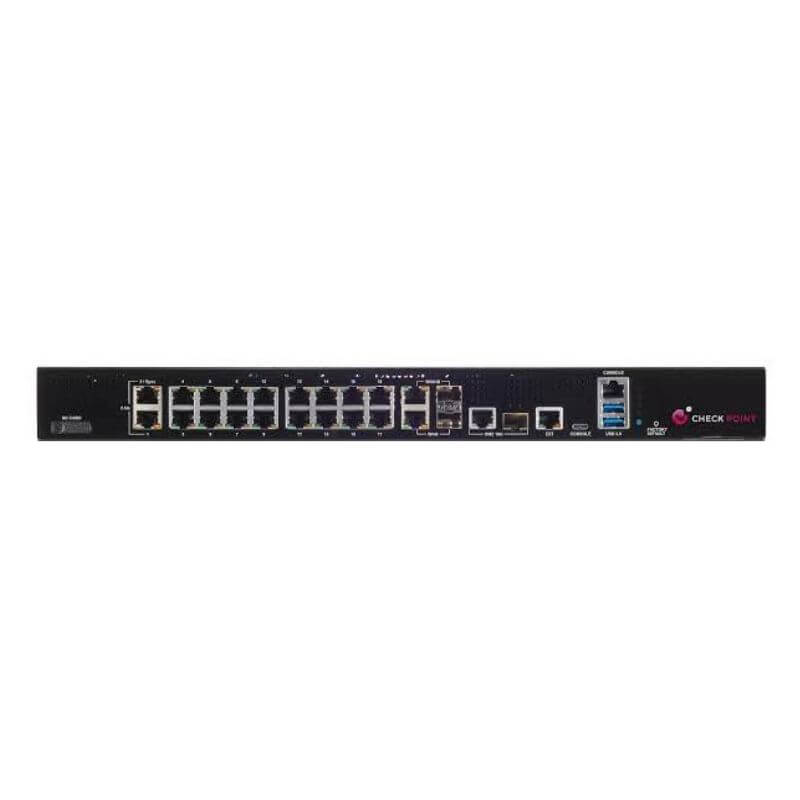

Check Point Quantum Spark 1600 (CPAP-SG1600-SNBT)

Thiết bị tường lửa Checkpoint CPAP-SG1600-SNBT Quantum Spark 1600 hỗ trợ 16x 1GbE LAN port, 1x 1GbE copper/fiber DMZ port, 1x 1GbE copper/fiber WAN port, SD card slot, USB port

Thông số kỹ thuật
Mô tả sản phẩm

Enterprise Testing Conditions
Threat Prevention (Mbps)	1,500
Next Generation Firewall (Mbps)	3,200
IPS Throughput (Mbps)	3,800
Firewall Throughput (Mbps)	4,800
RFC 3511, 2544, 2647, 1242 Performance (LAB)
Firewall 1518 Byte UDP Packets (Mbps)	8,000
VPN AES-128 Throughput (Mbps)	3,200
Connections per Second	55,000
Concurrent Connections	2,400,000
Software
Security	Firewall, VPN, User Awareness, QoS, Application Control, URL Filtering, IPS, Anti-Bot, Antivirus, Anti-Spam and SandBlast Threat Emulation (sandboxing)
Unicast, Multicast Routing	OSPFv2, BGPv4 and 4++, RIP, IGMP
Mobile Access License (Users)	500 remote SNX or Mobile VPN client users
Hardware
WAN Port	1x 10/100/1000Base-T RJ-45 / 1000BaseF SFP port (transceiver not included)
DMZ Port	1x 10/100/1000Base-T RJ-45 / 1000BaseF SFP port (transceiver not included)
LAN Ports	16x 10/100/1000Base-T RJ-45 ports
Console Port	1x USB-C and 1x RJ-45 console port
USB Port	2x USB 3.0 ports
Storage	Micro-SD card slot with 32 and 64 GB card options
eMMC	32 GB
MTBF	22.26 years @ 25°C
Dimensions
Enclosure	1U
Dimensions (W x D x H)	430 x 300 x 44.2 mm (16.93 x 11.8 x 1.74 in.)
Weight	6.17 kg (13.6 lbs)
Environment
Operating / Storage	0°C – 40°C / -45°C – 60°C (5-95%, non-condensing)
Power Requirements
AC Input	110 – 240VAC, 50 – 60 Hz
Power Supply	single 150W power supply
Power Consumption (Max)	71.6W
Heat Dissipation	244.31
