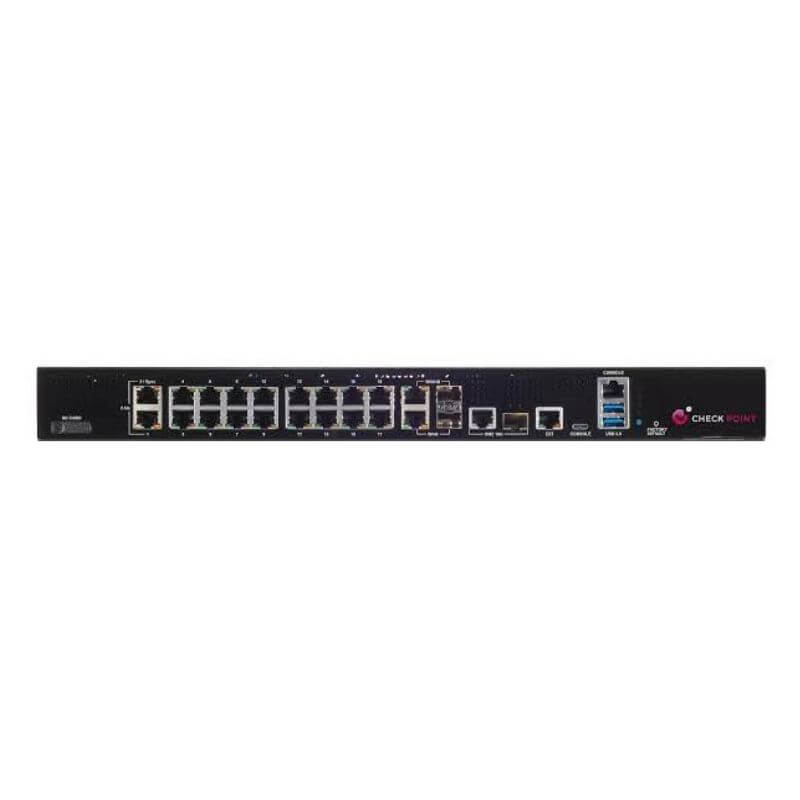

Check Point Quantum Spark 1800 (CPAP-SG1800-SNBT)

Thiết bị tường lửa Checkpoint CPAP-SG1800-SNBT Quantum Spark 1800 hỗ trợ 16x 1GbE LAN port, 2x 2.5GbE ports, 1x 10GbE copper/fiber DMZ port, 1x 1GbE copper/fiber WAN port, SD card slot, 2x USB, 2x power supplies, các cổng WAN 2 (1GbE copper/fiber) và Management (1GbE) được hỗ trợ trong các bản cập nhật sau.

Thông số kỹ thuật
Mô tả sản phẩm

Enterprise Testing Conditions
Threat Prevention (Mbps)	2,000
Next Generation Firewall (Mbps)	5,000
IPS Throughput (Mbps)	5,500
Firewall Throughput (Mbps)	7,500
RFC 3511, 2544, 2647, 1242 Performance (LAB)
Firewall 1518 Byte UDP Packets (Mbps)	17,000
VPN AES-128 Throughput (Mbps)	4,000
Connections per Second	66,000
Concurrent Connections	2,400,000
Software
Security	Firewall, VPN, User Awareness, QoS, Application Control, URL Filtering, IPS, Anti-Bot, Antivirus, Anti-Spam and SandBlast Threat Emulation (sandboxing)
Unicast, Multicast Routing	OSPFv2, BGPv4 and 4++, RIP, IGMP
Mobile Access License (Users)	500 remote SNX or Mobile VPN client users
Hardware
WAN Port	2x 10/100/1000Base-T RJ-45 / 1000BaseF SFP ports (transceiver not included) *WAN2 support in future SW release
DMZ Port	1x 10GBase-T RJ-45 / 10GBase SFP+ (transceiver not included)
LAN Ports	2x 2.5GbE Base-T RJ-45 plus 18x 10/100/1000Base-T RJ-45 ports
Management Port	1x 10/100/1000Base-T RJ-45 port *MGMT support in future SW release
Console Port	1x USB-C and 1x RJ-45 console port
USB Port	2x USB 3.0 ports
Storage	256 GB SSD and Micro-SD slot with 32 and 64 GB card options
eMMC	32 GB
MTBF	15.64 years @ 25°C
Dimensions
Enclosure	1U
Dimensions (W x D x H)	430 x 304 x 42 mm (16.93 x 11.8 x 1.7 in.)
Weight	6.76 kg (14.9 lbs)
Environment
Operating / Storage	0°C – 40°C / -45°C – 60°C (-55°C, non-condensing)
Power Requirements
AC Input	110 – 240VAC, 50 – 60 Hz
Power Supply	single 150W power supply
Power Consumption (Max)	39.6W
Heat Dissipation	319.3
