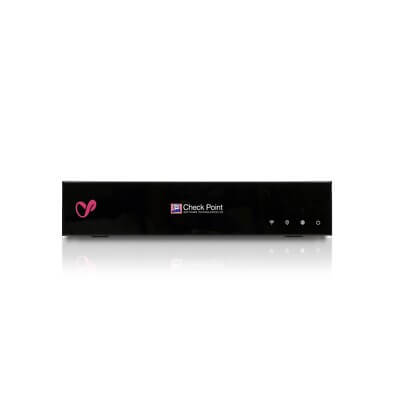

Check Point Quantum Spark PAP-SG1570WDSL-TE-LA

Checkpoint firewall CPAP-SG1570WDSL-TE-LA: wi-fi 802.11n/ac, 3/4G/LTE, 1x 1GbE WAN port, 1x 1GbE copper/fiber DMZ port, 8x 1GbE LAN switch, USB-C console port.

Thông số kỹ thuật
Mô tả sản phẩm

1570
Enterprise Testing Conditions
Threat Prevention with Smart Accel	440 Mbps
Threat Prevention	500 Mbps
Next Generation Firewall	900 Mbps
IPS Throughput	1,000 Mbps
Firewall Throughput	1,600 Mbps
Firewall 1518 Byte UDP Packets	4,400 Mbps
VPN AES-128 Throughput	1,160 Mbps
Connections per Second	6,000
Concurrent Connections	1,055,000
Software
Security	Firewall, VPN, User Aware, QoS, Application Control, URLF, IPS, Anti-Bot, Antivirus, Anti-Spam, Sandboxing
Unicast, Multicast Routing	OSPFv2, BGPv4 and 4++, Clustering (CP, BGPv4 and OSPF), PIM (SM, DM, SSM), IGMP, Clustering, High Availability
Pick local network and Internet connection, dual link/primary/backup WAN, DHCP, profiles delegation
Mobile Access License (Users)	200 remote SNX or Mobile VPN client users
Hardware
WAN Port	1x 10/100/1000Base-T RJ-45 port
DMZ Port	1x 10/100/1000Base-T RJ-45 or 1x 1000BaseF SFP port (transceiver not included)
LAN Ports	8x 10/100/1000Base-T RJ-45 ports
WiFi (optional add with Wi-Fi module)	2x 11AC AE224 Antenna (2×2) or 4x 11AC AEj524 (2×4) Ports (5GHz/2.4GHz band) up to max wireless 1,300 Mbps
WiFi supported with Wi-Fi module	Standard Embedded module, 4x/8x max wireless Antenna, Dual SIM (Nano or Micro)
2x/4x USB ports (Wi-Fi module)	USB3.0, USB2.0, Console, Antenna, Cellular SIM cards equipped
Console port (Wi-Fi module)	RJ-45, USB-C (Wi-Fi module)
SD Card slot	Micro-SD slot
Dimensions
Enclosure	Desktop
Dimensions (W x D x H)	210 x 170 x 42 mm, 8.3 x 6.7 x 1.7 in
Weight	0.87 kg (1.9 lbs)
Environment / Storage
Operating / Storage	0°C – 40°C / -45°C – 60°C (5–95%, non-condensing)
Power Requirements
AC Input	100-240VAC, 50-60 Hz
Power Supply Rating	12V/3.3A 40W power adapter (optional with Wi-Fi)
Power Consumption (Max)	21.6W (no Wi-Fi)
Heat Dissipation (BTU/hr)	73.7 (no Wi-Fi)
